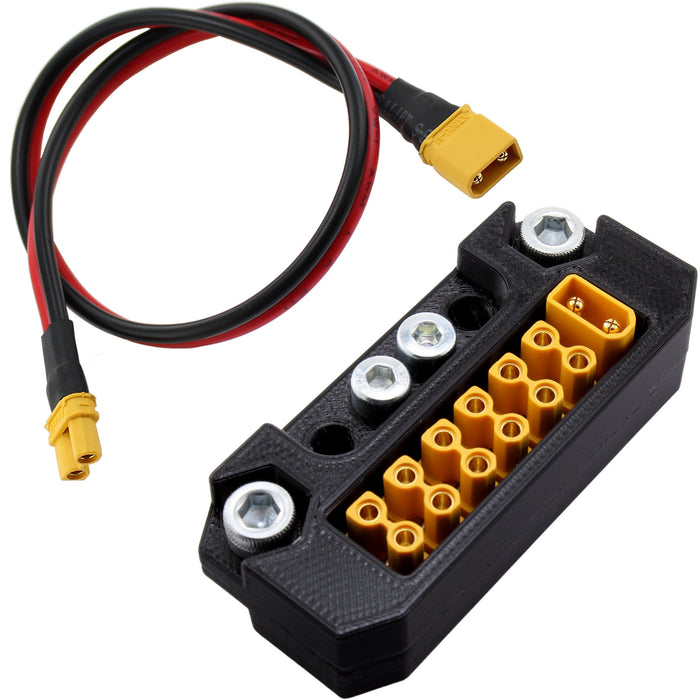

This power block effortlessly distributes power from an XT30 power source to up to six XT30 devices.

Description
Specifications
Documentation

Introducing the game-changing power distribution solution by AndyMark, designed to empower FIRST Tech Challenge teams and enthusiasts alike!

XT30 connectors are engineered to have a secure grip and offer a high-quality connection. The board has one male XT30 input and six female outputs.

FIRST Tech Challenge Usage:

FIRST Tech Challenge teams, are you looking to power more than just your Control/Expansion Hub directly from your battery? This board can power additional SPARKminis to control more motors than you are able to with the Control/Expansion Hub alone. The board features 10-32 mounting holes on a 2 in. spacing with integrated nut pockets on either side of the housing. This makes it perfect for mounting to our Robits Building System. Additionally, there are M4 mounting holes on an 8mm grid for mounting to other common FTC build systems.
- Cable Length: 30 cm
- Input: 1 XT30 Male
- Maximum Current: 20 A Combined
- Mounting: 10-32 holes on a 2 in. spacing, M4 holes on a 8 mm spacing
- Outputs: 6 XT30 Female
- Overall Height: 0.57 in.
- Overall Length: 2.5 in.
- Overall Width: 1.1 in.
CAD Files
am-4990 XT30 Power Distribution Block.STEP
Layout Prints
am-4990 XT30 Power Distribution Block.pdf
