West Coast Drive Chassis Side Rail - am-4885 - migrated

West Coast Drive Chassis Side Rail

by AndyMark
Save 53% Save 53%
$55.00 USD
$55.00 USD - $55.00 USD
$55.00 USD
$26.00 USD
$26.00 USD - $26.00 USD
$26.00 USD

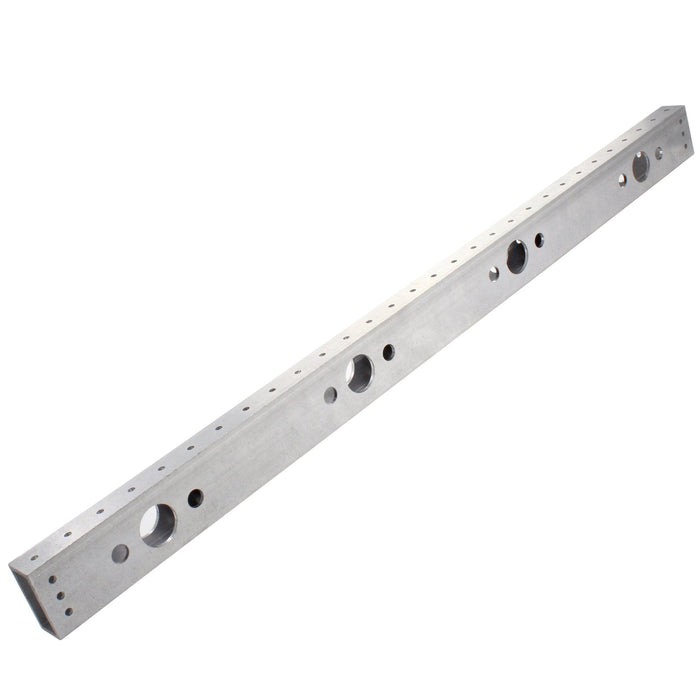

This 2 in.x 1 in.x 0.13 in. box tube is the Side Rail for the West Coast Drive Chassis.
SKU am-4885
  • Description
  • Specifications
  • Documentation
  • This 2 in.x 1 in.x 0.13 in. box tube is the Side Rail for the West Coast Drive Chassis. This rail had 1.125 in. Bearing through holes to be used with any of our 1.125 in. OD Bearings. A West Coast Drive has cantilevered wheels on the sides, so wheels stick out from the frame rather than be contained within it as in the AM14U family of drive bases. This rail is designed so that chain to drive the wheels can either be mounted inside the Tube or outside of the Tube.
    • Height: 2 in.
    • Length: 30 in.
    • Material: Aluminum
    • Wall Thickness: 0.13 in.
    • Width: 1 in.

  • CAD Files

    am-4885 Drivetrain Side Rail.STEP

    Layout Prints

    am-4885 Drivetrain Side Rail.PDF
