SPARK MAX PWM Cable - am-5518_1 - Image-1 - migrated

SPARK MAX PWM Cable

by AndyMark
$2.50 USD - $2.50 USD
$2.50 USD
$2.50 USD
$2.50 USD - $2.50 USD
$2.50 USD

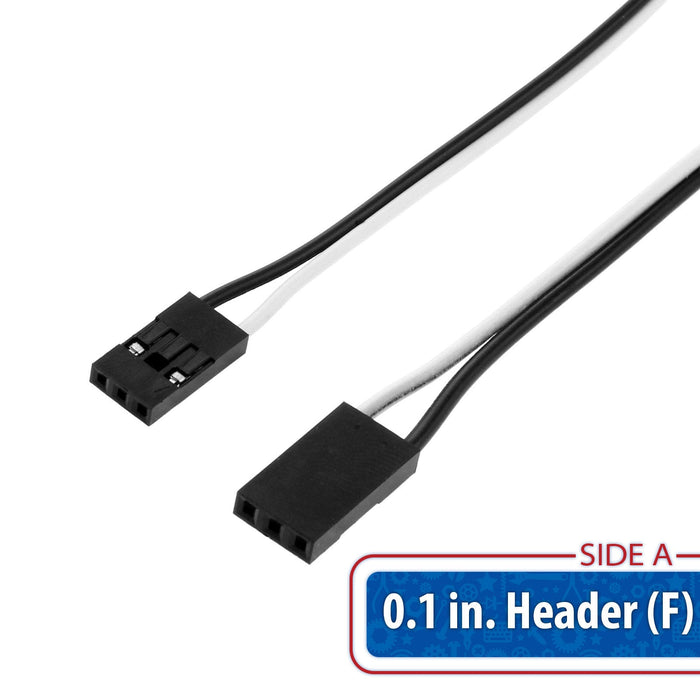

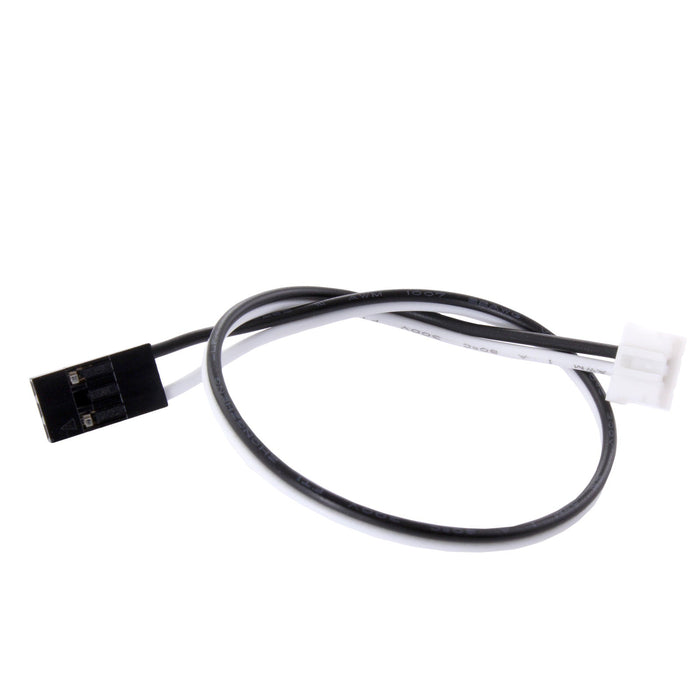

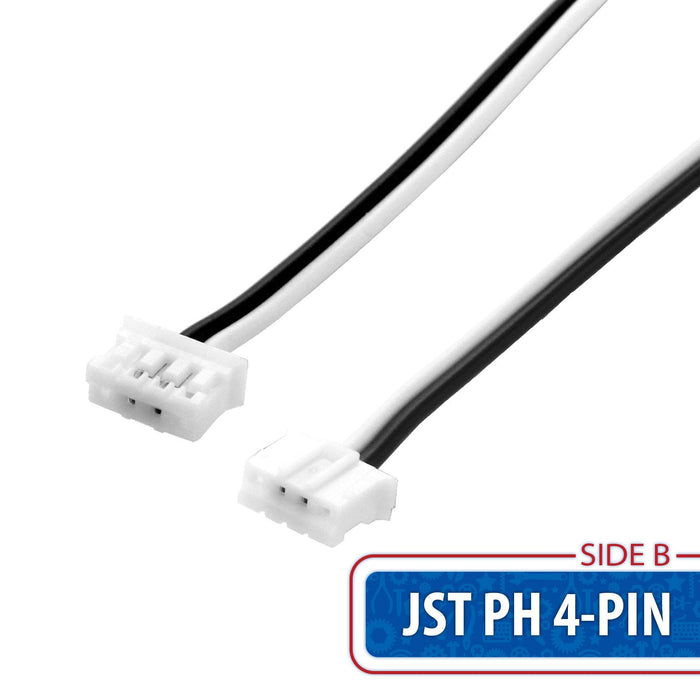

These SPARK MAX PWM Cables have a JST-PH 4-pin connector on one end, and a 0.1in 3-pin female PWM connector on the other.
SKU am-5518
  • Description
  • Specifications
  • Documentation
  • They are designed to convert the SPARK MAX Motor Controller's PWM/CAN port to a standard 3-pin PWM port on a robot controller. The black wire should be connected to the PWM port ground and the white wire should be connected to the PWM port signal pin.
    • Cable Type: JST-PH, 0.1 in. 3-pin female PWM
    • Gauge: 22 AWG
    • Length: 8 in.
    • Wire Colors: Black, White

  • CAD Files

    am-5518 8 inch SPARK MAX PWM Cable.STEP

    Layout Prints

    am-5518 8 inch SPARK MAX PWM Cable.pdf

Not Returnable

This product is not eligible for returns. All sales are final.
