RedLine Encoder Kit

Name: RedLine Encoder Kit
Brand: AndyMark
SKU: am-3773a
Price: 58.0 USD
Availability: InStock

by AndyMark

$58.00 USD - $58.00 USD

$58.00 USD

$58.00 USD - $58.00 USD

$58.00 USD

The RedLine Encoder Kit is designed to adapt the AM Mag Encoder(am-3479) onto the back shaft of the RedLine Motor.

The RedLine Encoder Kit is designed to adapt the AM Mag Encoder (am-3479) onto the back shaft of the RedLine Motor. Due to the mounting, it also provides additional support for motor spades. Included in the kit is a magnet adapter, mount board, screws, and the AM Mag Encoder.

Works with the Encoder cable, 36 in. long, with single pin connectors (am-2269)

Code Examples:
- JAVA PWM Example (.java)
- JAVA Quad Example (.java)
PWM Pinout

Quadrature Pinout

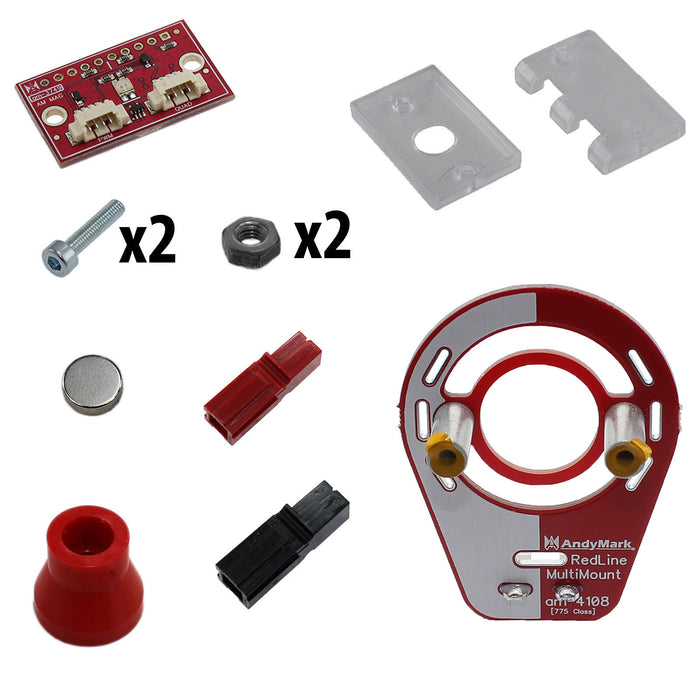

Included Items:
- 1 - MultiMount PowerPole Board (am-4108a)
- 1 - RedLine Encoder Magnet (am-3751)
- 1 - RedLine Encoder Magnet Shaft Adapter (am-3752)
- 1 - AM Mag Encoder (am-3749)
- Color: Red
- Output: 1024 CPR, Index, PWM position
- Voltage: 5 V
- Weight: 0.06 lbs.
STL Files
am-3773a Motor Multi Mount Back Casing (775).STL
