Powered Elevator Powertrain Kits

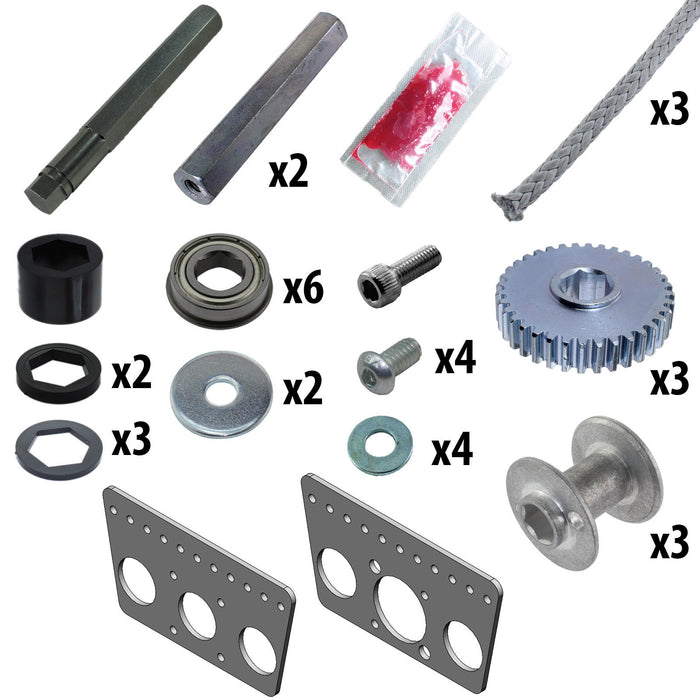

Powered Elevator Powertrain Kit, 1 Stage (am-5552):

• 1 - 10-32 x 0.5 in. Socket Head Cap Screw (am-1002)
• 4 - 1/4 in. Flat Washer (am-1027)
• 4 - 1/4-20 x 0.5 in. Button Head Cap Screw (am-1039)
• 2 - #10 x 0.75 in. Fender Washer (am-1523)
• 1 - Great Red Tacky Grease, 14.2 gram (am-2768)
• 6 - 1/2 in. Hex ID 1.125 in. OD Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
• 1 - Blue Sport Gearbox 3 in. Output Shaft (am-3791)
• 3 - 0.500 in. Hex Molded Spacer 0.063 in. Long (am-3948-063)
• 2 - 0.500 in. Hex Molded Spacer 0.125 in. Long (am-3948-125)
• 1 - 0.500 in. Hex Molded Spacer 0.500 in. Long (am-3948-500)
• 3 - Climber in a Box 2 Stage Winch Spool (am-4647_2000)
• 3 - 36 Tooth 20 DP 0.5 in. Hex Bore Steel Gear (am-4709)
• 2 - West Coast Drive Chassis Chain-in-Tube 1/2 in. Hex Long Output Shaft (am-4883)
• 1 - Powered Elevator Powertrain Transmission Plate (am-5555)
• 1 - Powered Elevator Powertrain Shaft Support Plate (am-5559)
• 3 - Rope, 1/8 in. dia Black or Gray, 10' Length (am-4559)

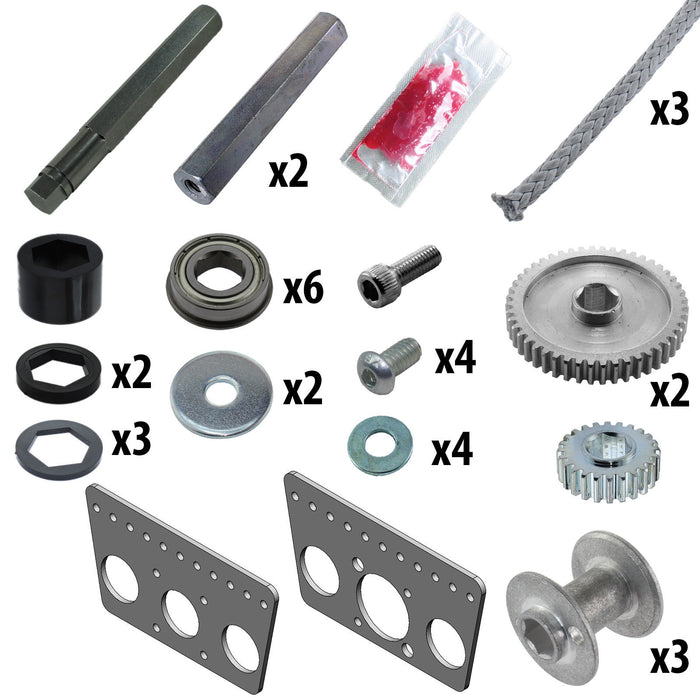

Powered Elevator Powertrain Kit, 2 Stage (am-5553):

• 1 - 10-32 x 0.5 in. Socket Head Cap Screw (am-1002)
• 4 - 1/4 in. Flat Washer (am-1027)
• 4 - 1/4-20 x 0.5 in. Button Head Cap Screw (am-1039)
• 2 - #10 x 0.75 in. Fender Washer (am-1523)
• 1 - Great Red Tacky Grease, 14.2 gram (am-2768)
• 6 - 1/2 in. Hex ID 1.125 in. OD Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
• 1 - Blue Sport Gearbox 3 in. Output Shaft (am-3791)
• 3 - 0.500 in. Hex Molded Spacer 0.063 in. Long (am-3948-063)
• 2 - 0.500 in. Hex Molded Spacer 0.125 in. Long (am-3948-125)
• 1 - 0.500 in. Hex Molded Spacer 0.500 in. Long (am-3948-500)
• 1 - 24 Tooth 20 DP 0.5 in. Hex Bore Steel Gear (am-4214)
• 3 - Climber in a Box 2 Stage Winch Spool (am-4647_2000)
• 2 - 48 Tooth 20 DP 0.5 in. Hex Bore Steel Gear (am-4714)
• 2 - West Coast Drive Chassis Chain-in-Tube 1/2 in. Hex Long Output Shaft (am-4883)
• 1 - Powered Elevator Powertrain Transmission Plate (am-5555)
• 1 - Powered Elevator Powertrain Shaft Support Plate (am-5559)
• 3 - Rope, 1/8 in. dia Black or Gray, 10' Length (am-4559)
