Pneumatic Fitting 1/8 NPT Male to 1/4 Tube Elbow Flow Valve - am-4827 - Meter=IN = allows flow towards NPT - migrated

Pneumatic Fitting 1/8 NPT Male to 1/4 Tube Elbow Flow Valve

by AndyMark
$8.40 USD - $13.00 USD
$8.40 USD
$8.40 USD - $13.00 USD
$8.40 USD - $13.00 USD
$8.40 USD
Choose Meter
SKU
  • Description
  • Specifications

  • Select your choice of a pneumatic meter-out or meter-in flow control valve. The port is a 1/8 in. NPT male thread, and 1/4 in. diameter tube can be pressed in to the push-to-connect fitting.

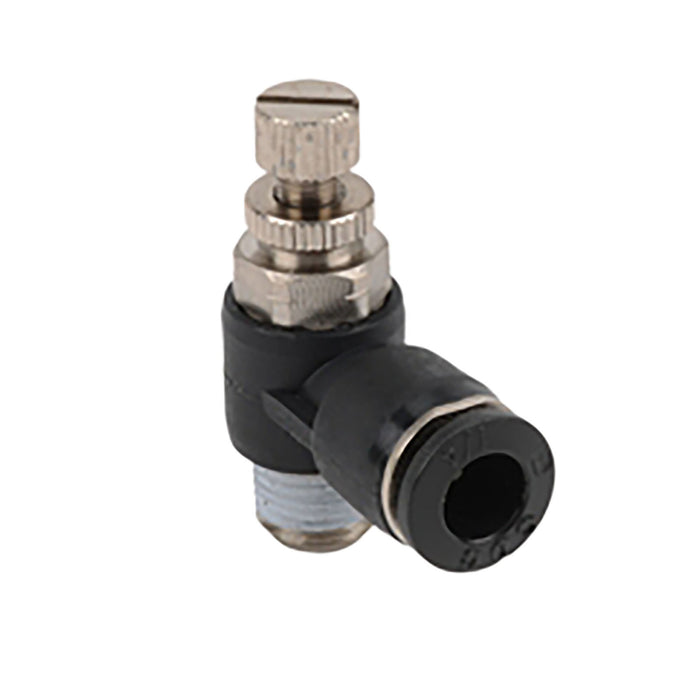

    Meter-out allows for the flow away from the cylinder to be controlled. This definition assumes that the pneumatic cylinder is on the NPT thread side of the value. The opposite flow is not restricted.

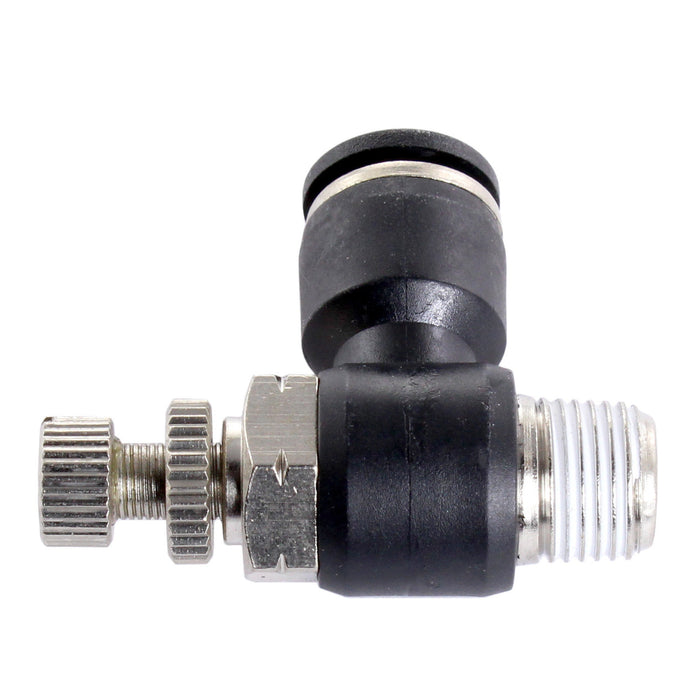

    Meter-in allows for the flow towards the cylinder to be controlled. This definition assumes that the pneumatic cylinder is on the NPT thread side of the value. The opposite flow is not restricted.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Hex Width: 7/16 in.
    • Material: Rotating thermoplastic (PBT) body, nickel-plated brass threads, stainless steel tube griping claws, and pre-applied Teflon thread sealant
    • Operating Pressure: 0~150 psi
    • Port(s): (1) 1/8 in. NPT male with pre-applied Teflon thread sealant, (1) 1/4 in. Male Tube Press-In
    • Weight: 0.01 lbs.
