Pneumatic Fitting 1/8 in. NPT Male Branch Tee 1/4 in. Tube - am-4828 - migrated

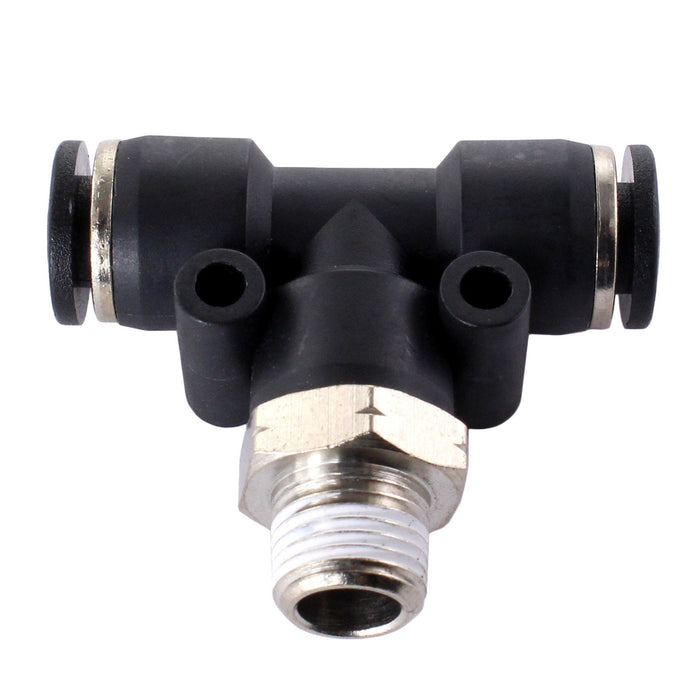

Pneumatic Fitting 1/8 in. NPT Male Branch Tee 1/4 in. Tube

by AndyMark
Save 53% Save 53%
$3.60 USD
$3.60 USD - $3.60 USD
$3.60 USD
$1.70 USD
$1.70 USD - $1.70 USD
$1.70 USD
This is a pneumatic tee fitting.
SKU am-4828
  • Description
  • Specifications

  • Two ports are 1/4 in. push-in connections and one is 1/8 in. NPT.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Height: 1.4 in.
    • Length: 1.6 in.
    • Material: Brass
    • Operating Pressure: 0~150 psi
    • Port(s): (2) 1/4 in. Male Tube Press-In
    • Thread: 1/8 NPT
    • Tube Size: 1/4 in.
    • Width: 0.6 in.

Not Returnable

This product is not eligible for returns. All sales are final.
