PicoBox Turbo

Name: PicoBox Turbo
Brand: AndyMark
SKU: am-3449
Price: 56.0 USD
Availability: InStock
Rating: 4.0 (1 reviews)

by AndyMark

Save 53%

$118.00 USD

$118.00 USD - $118.00 USD

$118.00 USD

$56.00 USD

$56.00 USD - $56.00 USD

$56.00 USD

The PicoBox Turbo allows the motor to spin as close to its free speed for very high-speed flywheels and intakes.

Description
Gearbox Ratios
Specifications
Documentation

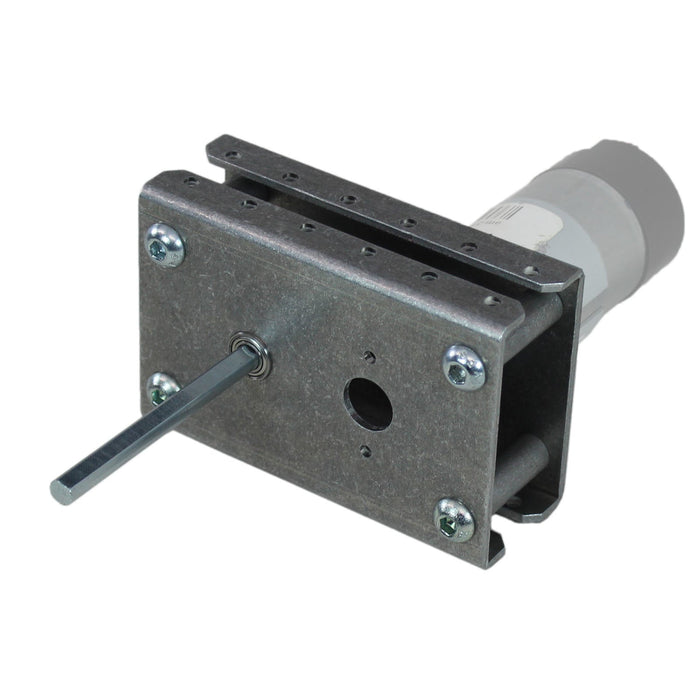

The PicoBox Turbo is a unique member of the PicoBox family. Instead of installing a NeveRest gearmotor, you simply install the bare motor without the gearhead! This allows you to use the motor close to its free speed for very high-speed flywheels and intakes.

The gearbox plates feature two holes for face-mounting a NeveRest motor. Flanges on the top and bottom feature a 16 mm hole pattern with clearance holes for 6-32 screws for easy integration with our TileRunner drive system and other common building systems seen in FIRST Tech Challenge. The Turbo includes 35, 40, and 45 tooth pinion and cluster gears, allowing you to pick between three different ratios.

Individual Components that make up this Assembly:
- 4 - 1/4-20 Nylock Jam Nut - Bulk Qty (am-1102)
- 2 - M3-0.5 x 6 mm SHCS (am-1254)
- 8 - 6-32 0.5 in. Hex Head Screw Bulk Qty (am-1436)
- 4 - 1/4-20 x 1.75 in. Hex Head Screw
- 1 - Red Tacky Grease, 14.2 gram (am-2768)
- 1 - 35 Tooth NeveRest Pinion for Picobox Turbo (am-3201)
- 1 - 40 Tooth NeveRest Pinion for Picobox Turbo (am-3202)
- 1 - 45 Tooth NeveRest Pinion for Picobox Turbo (am-3203)
- 2 - 6x12x4 Flanged Bearing (am-3377)
- 4 - PicoBox Spacer (am-3406)
- 1 - 35T Gear for PicoBox (am-3408)
- 1 - 40T Gear for PicoBox (am-3407)
- 1 - 45T Gear for PicoBox (am-3409)
- 2 - PicoBox Turbo Plate (am-3438)
- 1 - 6 mm Round Bore 2-part Collar Clamp (am-1650) - Updated from am-3473 on 1/10/24
- 1 - 12 mm x 6.15 mm Aluminum PicoBox Turbo Spacer (am-3481)
- 1 - 6 mm D Bore Single Boss Nub (am-3443a)
- 1 - 6 mm D Shaft, 100 mm (am-3226-100)
- 1 - 1.5 mm L-Key Allen Wrench (am-3690)
If you need the output shaft to be a 1/2 in. Hex, check out the 6 mm D to 0.5 in. Hex-Shaft Adapter (am-3744a)
Please contact support@andymark.com if you do not see a Ratio Table
- Motor Input: NeverRest
- Motor Quantity: 1
- Overall Depth With Motor: ~ 174 mm
- Overall Height: 64 mm
- Overall Length: 96 mm
- Ratio: 1:0.78, 1:1, 1:1.28
- Weight: 0.951 lbs.
CAD Files
am-3449 PicoBox Turbo REV2.STEP
Guides
am-3449 PicoBox Turbo User Guide.pdf
Layout Prints
am-3449 PicoBox Turbo REV2.PDF

Not Returnable

This product is not eligible for returns. All sales are final.
