Norgren Regulator and Bracket - am-2020 - migrated

Norgren Regulator and Bracket

by AndyMark
$49.00 USD - $49.00 USD
$49.00 USD
$49.00 USD
$49.00 USD - $49.00 USD
$49.00 USD

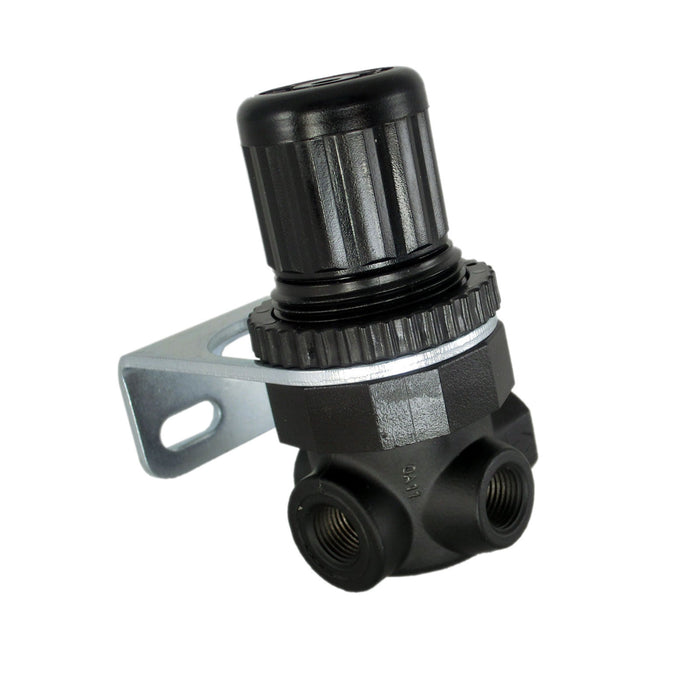

This is an air pressure regulator manufactured by Norgren.
SKU am-2020
  • Description
  • Specifications

  • Also included in this part is the mounting bracket and a plastic mounting nut.


    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Depth: 1.5 in. (without gauge)
    • Flow: 14.0 SCFM
    • Height: 2.91 in.
    • Manufacturer: Norgren
    • Manufacturer Part #: R07-100-RNEA
    • Material: Acetal plastic, Zinc, with black powdercoat paint
    • Maximum Operating Pressure: 300 psi
    • Media: compressed air
    • Temperature: -30°F to 150°F
    • Weight: 0.41 lbs.
