Falcon 500 Spline to 1/2 in. Hex Shaft Adapter

Name: Falcon 500 Spline to 1/2 in. Hex Shaft Adapter
Brand: AndyMark
SKU: am-4187
Price: 12.0 USD
Availability: InStock
Rating: 5.0 (2 reviews)

by AndyMark

$12.00 USD - $12.00 USD

$12.00 USD

$12.00 USD - $12.00 USD

$12.00 USD

These adapters are intended to be a high strength solution to adapt the Falcon Spline to any product that has a 1/2 in hex bore.

Quantity

SKU

Description
What's in the Box?
Specifications
Documentation

This product includes the correct size washers to retain items along the hex shaft, as well as a thread-patch 8-32 screw to be used in conjunction with spacers included with the Falcon 500 motor to retain motion hardware.

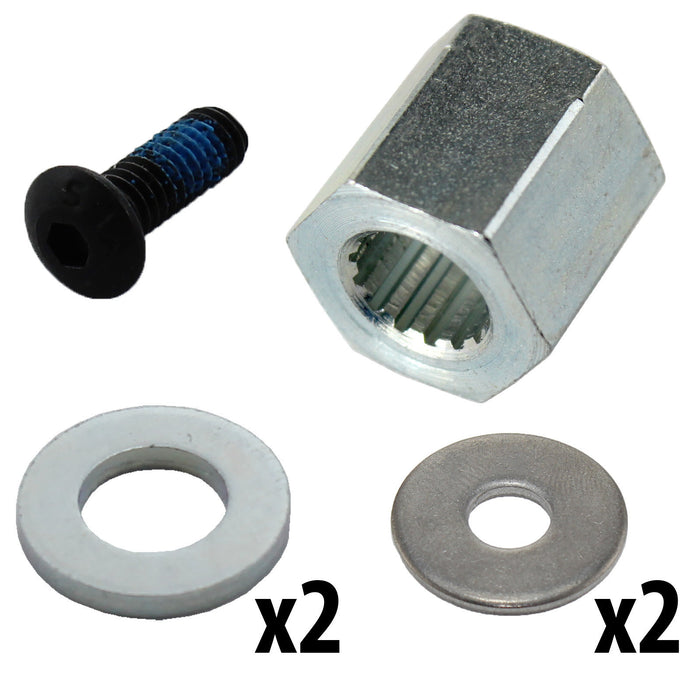

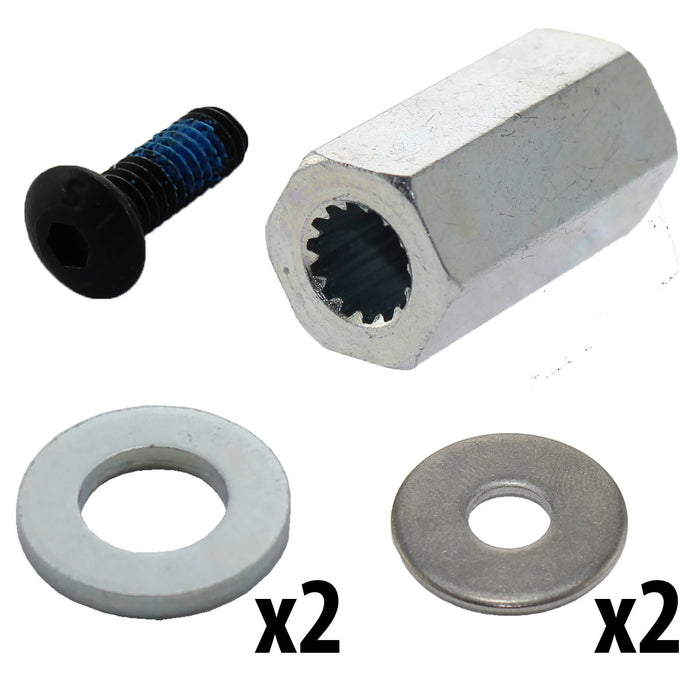

Included Items:
- 1 - Spline to Hex Adapter
- 2 - 1/16 in. Steel Washer (am-1538)
- 2 - M7 Flat Washer (am-1543)
- 1 - 8-32 x 500 BHCS with Nylon Patch (am-1691)
- Bore: Falcon Spline
- Hex Size: 1/2 in.
- Length: 1/2 in., 1 in.
- Material: Steel
CAD Files
am-4187 Spline to 500 Hex.STEP
Layout Prints
am-4187 Falcon 500 Spline to 500 Hex Adapter WEBPRINT.PDF
