Double 1.125 in. Bearing Plate

by AndyMark

$4.20 USD - $4.20 USD

$4.20 USD

$4.20 USD - $4.20 USD

$4.20 USD

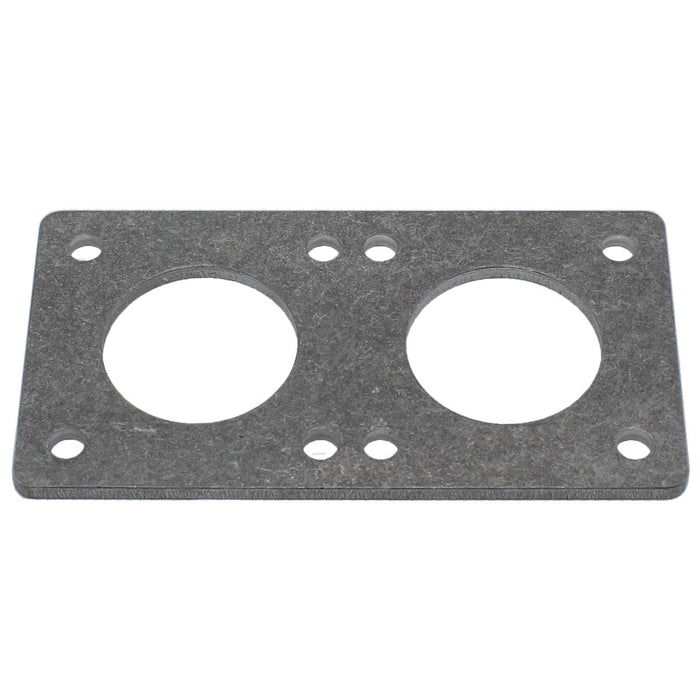

This Double 1.125 in. Bearing Plate is perfect for locating two bearings side by side with a 70T 20DP total gear spacing.

Description
Specifications
Documentation

Each bearing hole also has a 2 in. bolt circle around it for mounting gearboxes or motors. The plate is 2 in. tall so it fits onto the face of a 2 in. box tube.
- Material: 6061-T6 Aluminum
- Thickness: 0.125 in.
CAD Files
am-4166 1IN Sport Double Bearing Mount.STEP
Layout Prints
am-4166 1IN Sport Double Bearing Mount.PDF
