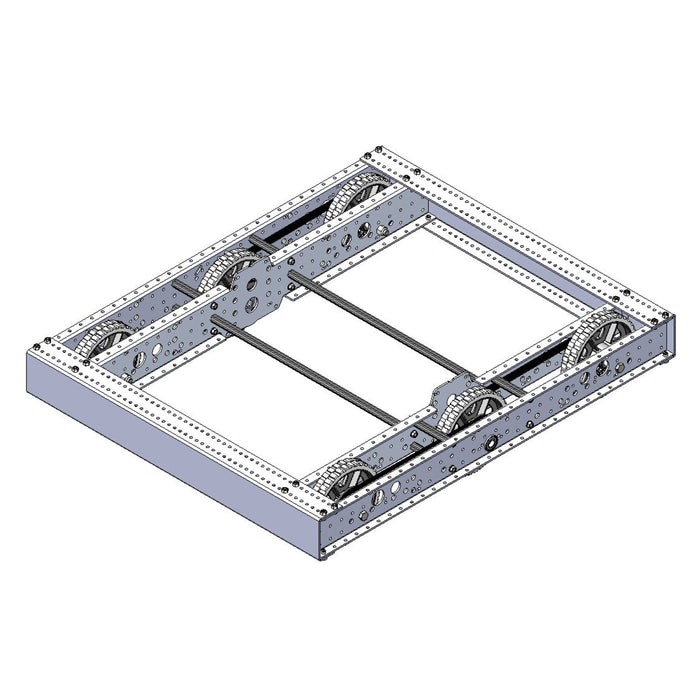

AM14U6 with No Gearboxes

This chassis is the latest iteration of drive chassis in the AM14U family building on the lessons learned from the last 10 years of AM14U family chassis and the past 15 years AndyMark of supplying the drive chassis for the FIRST Robotics Competition Kit of Parts. This product ships as an un-assembled kit. It features HiGrip Wheels, and HTD Belts. If this chassis is being used for the FIRST Robotics Competition, please consider the robot perimeter rules and size this chassis accordingly.

This chassis DOES NOT include motors or Bumper Hardware or Gearboxes.

Various Configurations:
Built on the same great features of previous AM14U family chassis, this can be configured into many different perimeter, wheel, and gearbox configurations. There are literally thousands of possible playing configurations.

It is shipped as a kit with plates that can build its large square configuration. This makes it the largest possible size and allows for the user to trim the length and width of the chassis to become a long or wide version that fits into different the size constraints of each specific year. The assembly instructions show how it can be changed, be sure to check out the assembly videos as well.
For even more wheel and build configurations, check out our AM14U4 upgrade kits.

Control Options:

To control this drive, you will need a power and control system like the Electronic Bundles kit, roboRIO, Spark Max, 4 CIM motors, and PDP (BCRX4CP). Many options are available!

The chassis requires a minimum of two CIM style motors (am-0255), but we recommend four CIMs to be competitive in situations like heavy robots, high traction, and pushing match situations that put a lot of load on the motors. You will also need at least one battery. We recommend the 2 Pack of MK Batteries (am-0844), and the 3 Bank SB50 NOCO Battery Charger (am-4968_3). There are many options available here as well.

Box Size: 7 in. x 7 in. x 34 in.
Weight without motors: ~25lbs
