AM14U Family XL End Plate

Name: AM14U Family XL End Plate
Brand: AndyMark
SKU: am-3513
Price: 50.0 USD
Availability: InStock
Rating: 5.0 (2 reviews)

by AndyMark

$50.00 USD - $50.00 USD

$50.00 USD

$50.00 USD - $50.00 USD

$50.00 USD

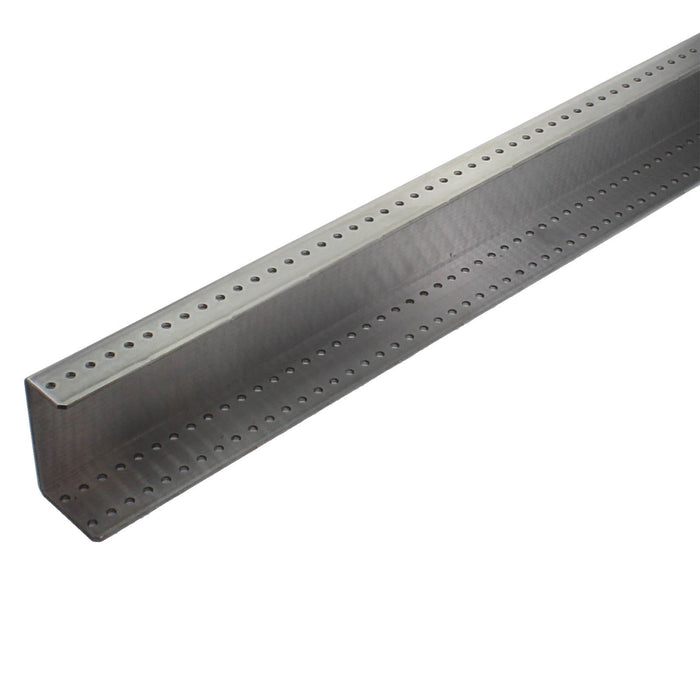

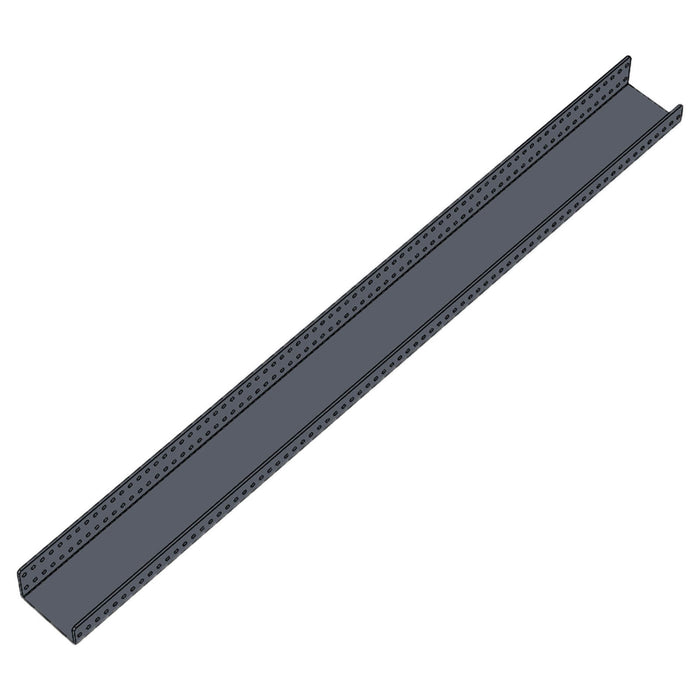

This sheet metal plate makes up the end plate of the AM14U family of drive chassis.

This plate captures the Inner and Outer plate and provides a surface to mount upper structures.
- Height: 3.33 in.
- Hole Size: 0.210 in.
- Length: 38.0 in.
- Lower Flange Length: 1.375 in.
- Lower Hole Pattern: 0.5 in. Spacing
- Material: 5052 Aluminum
- Thickness: 0.125 in.
- Upper Flange Length: 2.125 in.
- Upper Hole Pattern: Two rows 1.0 in. apart, 0.5 in. between holes in each row
CAD Files
am-3513 AM14U3 AM14U4 End Plate XL.STEP
am-3513 AM14U Family XL End Plate.STEP
Layout Prints
am-3513 AM14U3 AM14U4 End Plate XL.PDF
am-3513 AM14U Family XL End Plate.pdf
