This product has been replaced by am-4710

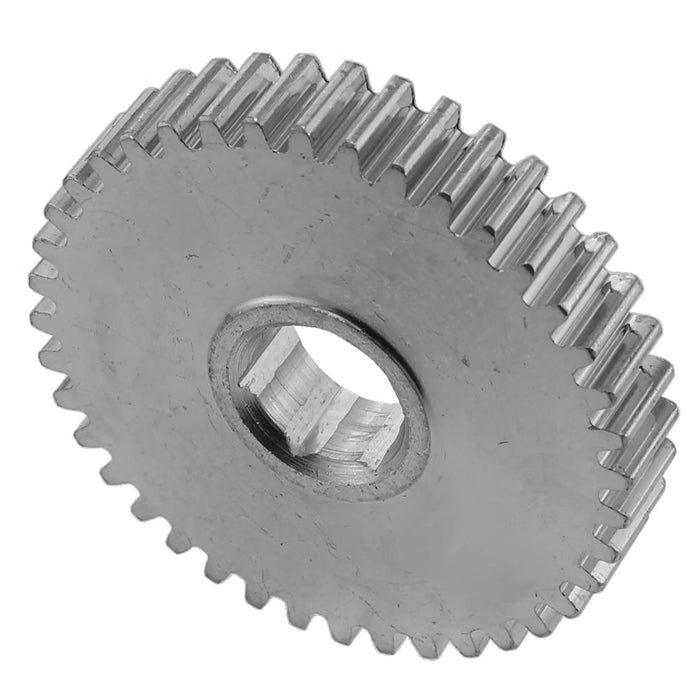

40 Tooth 20 DP 0.5 in. Hex Bore Steel Gear

Name: 40 Tooth 20 DP 0.5 in. Hex Bore Steel Gear
Brand: AndyMark
SKU: am-0178
Price: 16.0 USD
Availability: OutOfStock
Rating: 4.8 (5 reviews)

by AndyMark

$16.00 USD - $16.00 USD

$16.00 USD

$16.00 USD - $16.00 USD

$16.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-4710

Description
Specifications
Documentation

This gear can be used in the Toughbox, replacing the 50 Tooth Large Output Gear. It can be paired with a 24 Tooth Small Cluster Gear, in order to increase the output speed of the Toughbox.

Standard Toughbox output reduction: 12.76:1.
Using this gear and a 24 Tooth Small Cluster Gear yields a 5.95:1 ratio.
- Bore: 0.500 in. [12.7 mm] (1/2) Hex
- Diametral Pitch: 20
- Finish: Zinc Plated
- Material: 4140 Steel
- Pitch Diameter: 2 in.
- Pressure Angle: 14.5°
- Teeth: 40
- Thickness: 0.4 in.
- Weight: 0.305 lbs.
CAD Files
am-0178 40T 20DP 500H WITH TEETH REV 2.STEP
Layout Prints
am-0178 40T 20DP 500H WITH TEETH REV 2.PDF

Not Returnable

This product is not eligible for returns. All sales are final.
