4 Tooth 0.5 in. Hex Bore Bronze Dog Gear - am-3568 - migrated

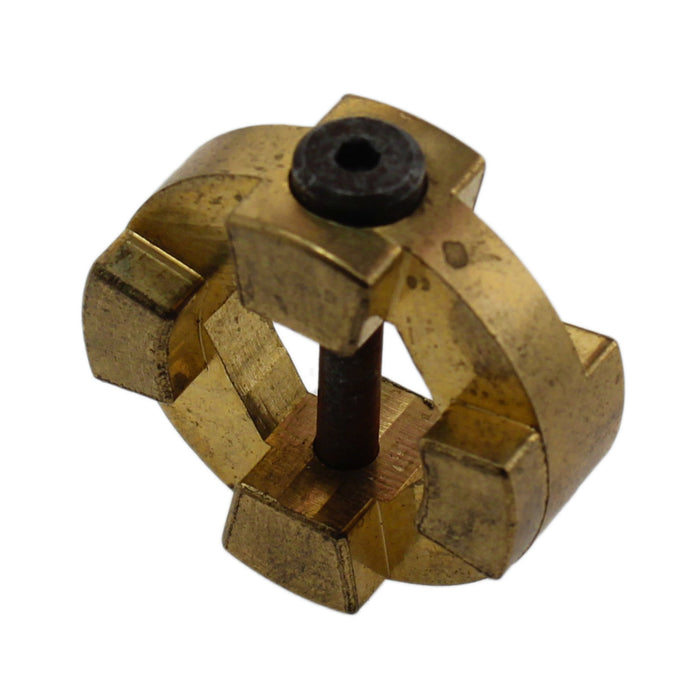

4 Tooth 0.5 in. Hex Bore Bronze Dog Gear

by AndyMark
$39.00 USD - $39.00 USD
$39.00 USD
$39.00 USD
$39.00 USD - $39.00 USD
$39.00 USD
This dog gear is used within all of AndyMark's EVO Shifter two speed gearboxes.
SKU am-3568
  • Description
  • Specifications
  • The dog gear has 4 dogs on each face. This allows more material around the dog gear screw, increasing strength over previous designs. A robust 1/8 in. diameter shoulder screw replaces the previously used #4-40 screw. The dog gear material is AMPCO® 18 Bronze. This material has similar properties to stainless steel (previously used) but has added lubricity for smooth shifting.

    Individual Parts within Assembly:
    • Bore: 0.500 in. [12.7 mm] (1/2) Hex
    • Material: AMPCO 18 Bronze
    • Outside Diameter: 1 in.
    • Teeth: 4
    • Transverse Hole: Counter Bored for 0.125 in. Precision Shoulder Screw
    • Weight: 0.049 lbs.
