4 in. BB Mecanum Wheel Plates

by AndyMark

$10.00 USD - $10.00 USD

$10.00 USD

$10.00 USD - $10.00 USD

$10.00 USD

Quantity

SKU

Description
Specifications
Documentation

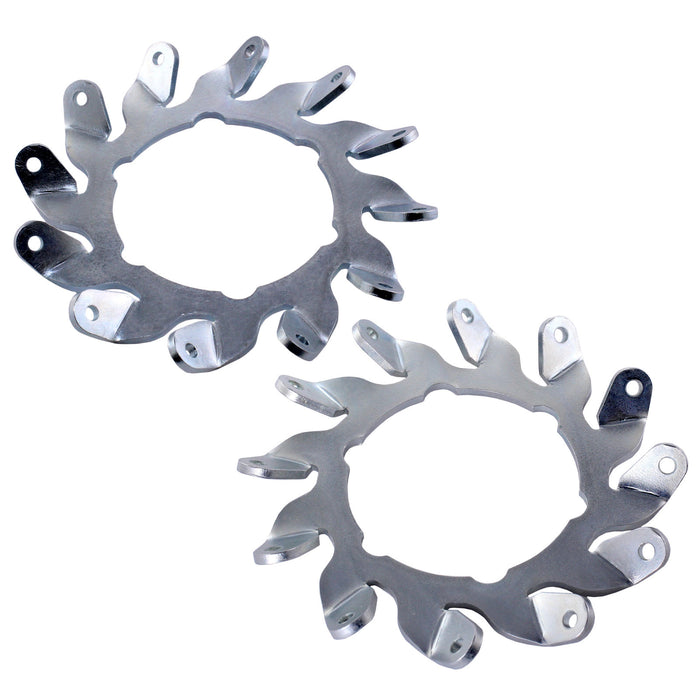

These plates are a part of the 4 in. BB Mecanum Wheels.
- Diameter: 3.95 in.
- Thickness: 0.09 in.
CAD Files

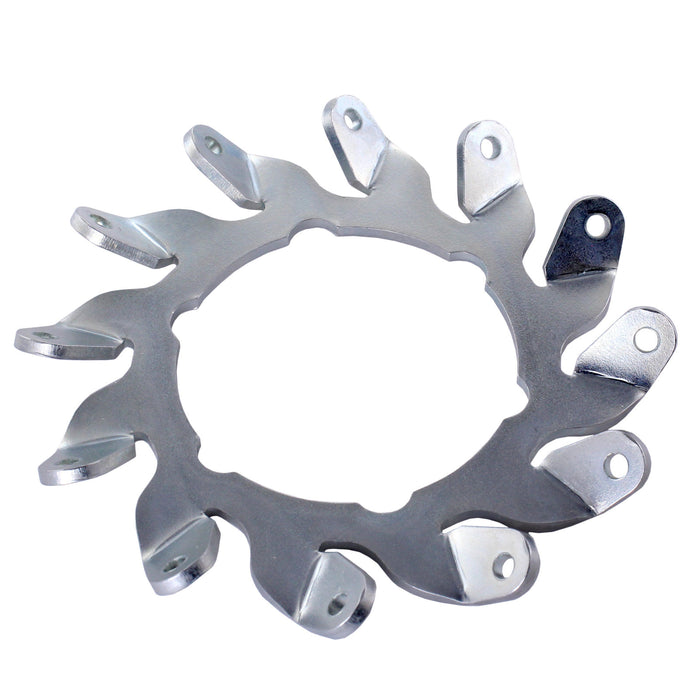

am-4734R_plate 4IN Ball Bearing Mecanum Right Plate.STEP
am-4734R 4in BB Mecanum Right Nub Bore.STEP

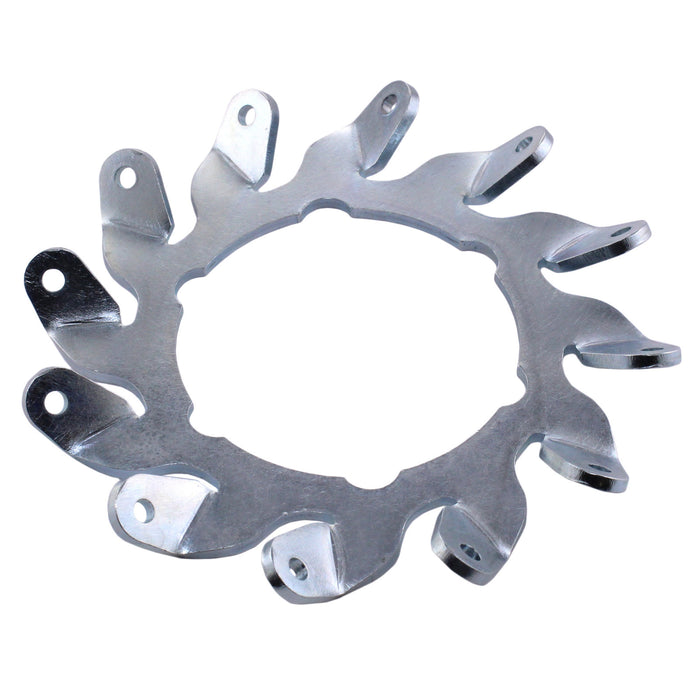

am-4734L_plate 4IN Ball Bearing Mecanum Left Plate.STEP
am-4734L 4in BB Mecanum Left Nub Bore.STEP
Layout Prints
am-4734R_plate 4IN Ball Bearing Mecanum Right Plate.pdf
am-4734R 4in Ball Bearing Mecanum Wheel Right Nub Bore.pdf
am-4734L_plate 4IN Ball Bearing Mecanum Left Plate.pdf
am-4734L 4in Ball Bearing Mecanum Wheel Left Nub Bore.pdf
Guides
am-4734, am-4735, am-4736 4IN BB Mecanum Wheel - Assembly Guide.pdf
