35 Tooth 20 DP 0.5 in. Hex Bore Steel Gear - am-3329 - migrated

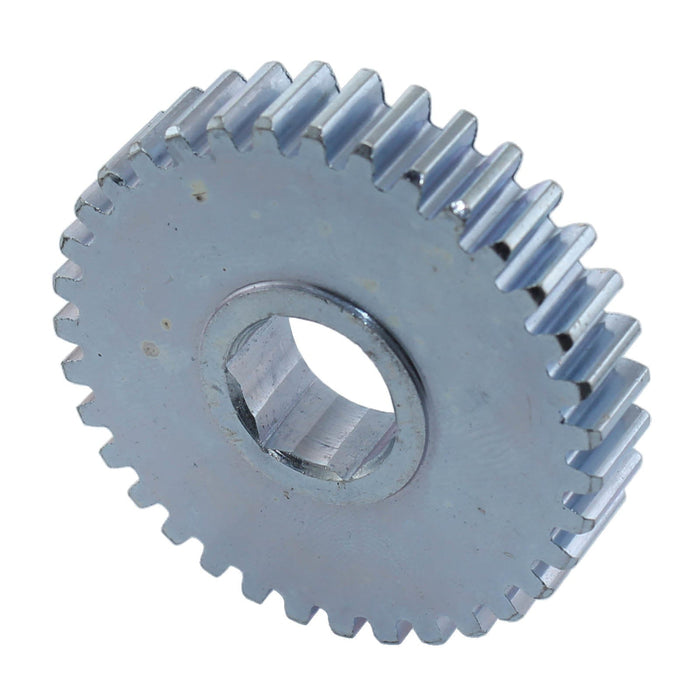

35 Tooth 20 DP 0.5 in. Hex Bore Steel Gear

by AndyMark
Save 31% Save 31%
$16.00 USD
$16.00 USD - $16.00 USD
$16.00 USD
$11.00 USD
$11.00 USD - $11.00 USD
$11.00 USD
SKU am-3329
  • Description
  • Specifications
  • Documentation

  • This 20 DP gear has 35 teeth and has a perfect home waiting for it in your custom gearbox project. It is made from high strength steel.

    • Bore: 0.500 in. [12.7 mm] (1/2) Hex
    • Diametral Pitch: 20
    • Face Width: 0.372 in.
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pitch Diameter: 1.85 in.
    • Pressure Angle: 14.5°
    • Teeth: 35
    • Weight: 0.228 lbs.

  • CAD Files

    am-3329 35T 20dp 500h.STEP

    Layout Prints

    am-3329 35T 20dp 500h Gear.PDF

Not Returnable

This product is not eligible for returns. All sales are final.
