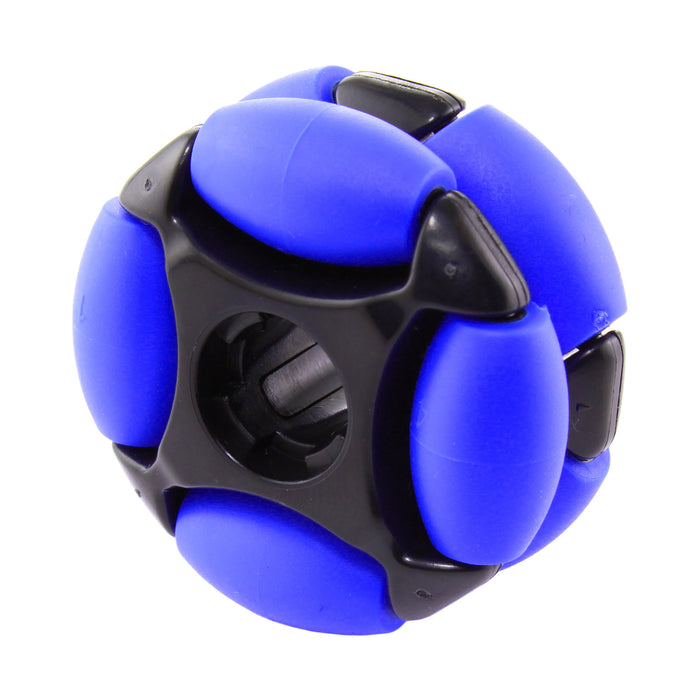

35 mm Dualie Omni Wheel - am-4970_blue - Bore=8 mm Round - migrated

35 mm Dualie Omni Wheel

by AndyMark

$13.00 USD - $15.00 USD

$13.00 USD

$13.00 USD - $15.00 USD

$13.00 USD - $15.00 USD

$13.00 USD

Omni-directional wheels in an absolutely tiny diameter, perfect for use in odometry.

Quantity

SKU

Description
Specifications
Documentation

These 35 mm omni wheels feature a 50A Durometer. There are two bore options:

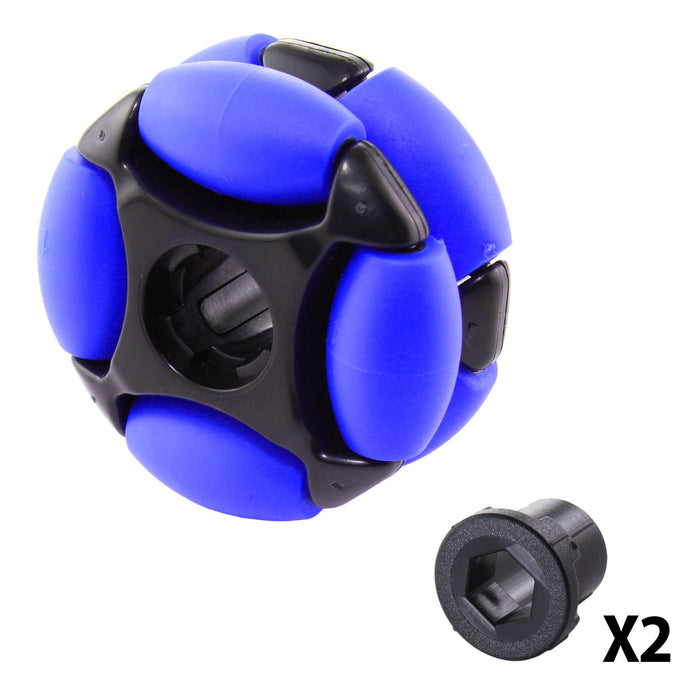

- 5 mm Hex - includes 8 mm Round to 5 mm Hex Adapter (am-4971)
- 8 mm Round - no adapters included
Note: AndyMark recommends using a 5mm hex shaft to align the hex inserts before installing the inserts to the wheel.

Be sure to align the 4 prongs on the exterior of the insert with the wheel for proper installation.
- Bore: 8 mm [0.31 in.] Round, 5 mm Hex
- Diameter: 1.38 in. [35 mm]
- Durometer: 50A
- Load Capacity: 10 lbs.
- Material: ABS (body), TPE (roller)
- Weight: 0.076 lbs.
CAD Files
am-5162_blue 35mm Omni 5mm Hex.STEP
am-4970_blue 35mm Omni Wheel 8mm Bore.STEP
Layout Prints
am-5162 35mm Omni 5mm Hex Bore.PDF
am-4970 35mm Omni 8mm Round Bore.pdf
