3-Pin MA3 Encoder Cable - am-3083_1 - Image-1 - migrated

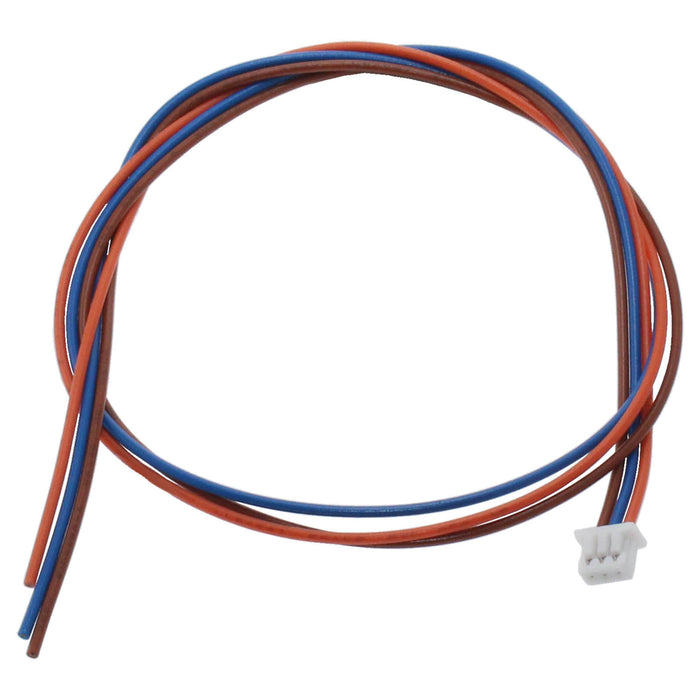

3-Pin MA3 Encoder Cable

by AndyMark
$9.20 USD - $9.20 USD
$9.20 USD
$9.20 USD
$9.20 USD - $9.20 USD
$9.20 USD
This is the cable used with the MA3 Absolute Encoder.
SKU am-3083
  • Description
  • Specifications

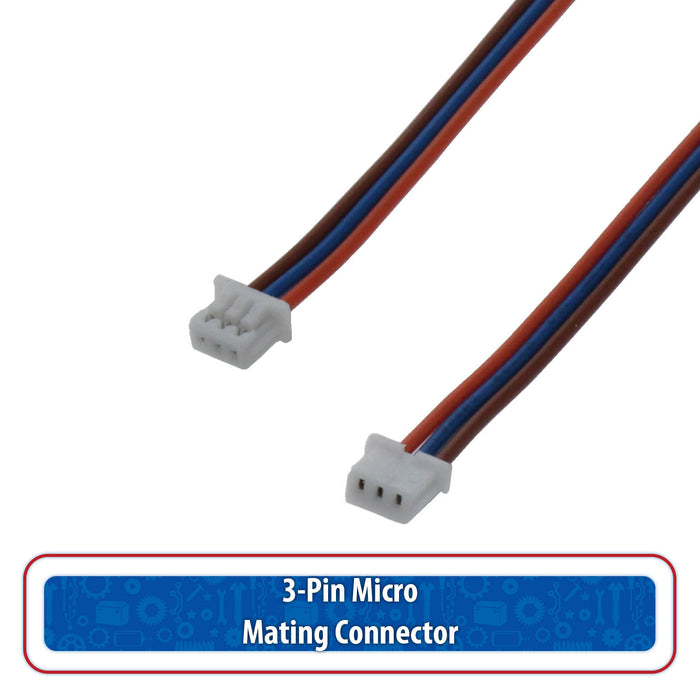

  • This is the cable used with the MA3 Absolute Encoder. A 3-pin micro mating connector is on one end of 3 individual discrete 26 AWG wires. Standard length is 1 ft..

    • Pin 1: Orange, 5VDC
    • Pin 2: Blue, Analog/ PWM
    • Pin 3: Brown, Ground
    • Gauge: 26 AWG
    • Length: 12 in.
    • Weight: 0.03 lbs.
