25 Series 32 Tooth Aluminum Sprocket - am-0233 - migrated

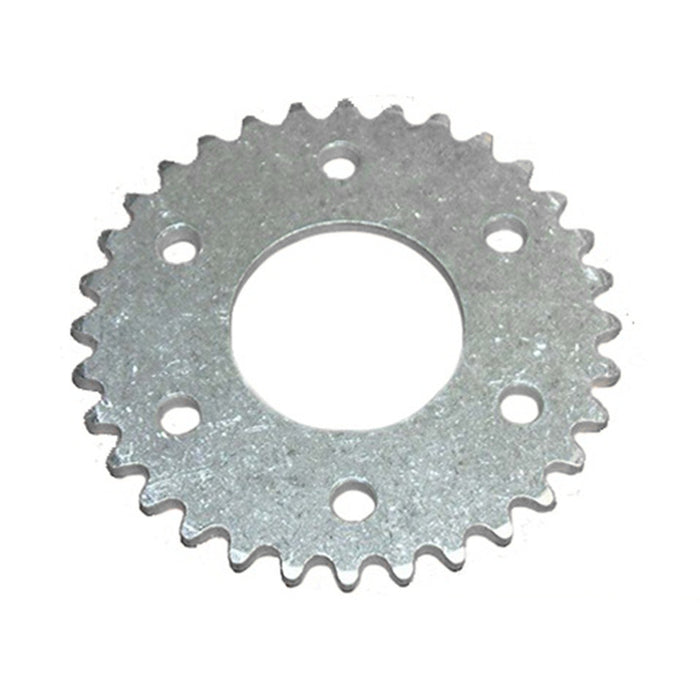

25 Series 32 Tooth Aluminum Sprocket

by AndyMark

$12.00 USD - $12.00 USD

$12.00 USD

$12.00 USD

$12.00 USD - $12.00 USD

$12.00 USD

25 series, large bore, 32 tooth

Specifications
Documentation

- Bolt Circle: 1.875 in. diameter, 0.206 in. diameter holes
- Inside Diameter: 1.1245 in.
- Material: 6061-T6 Aluminum
- Number of Teeth: 32
- Outside Diameter: 2.68 in.
- Pitch Diameter: 2.563 in.
- Series: #25
- Thickness: 0.086 - 0.092 in.
- Weight: 0.05 lbs.
CAD Files
am-0233 32T 25 Chain Bearing Bore Sprocket.STEP
Layout Prints
am-0233 32T 25 Chain Bearing Bore Sprocket.PDF

Not Returnable

This product is not eligible for returns. All sales are final.
