25 Series 10 Tooth 8 mm Bore Aluminum Sprocket - am-0505 - migrated

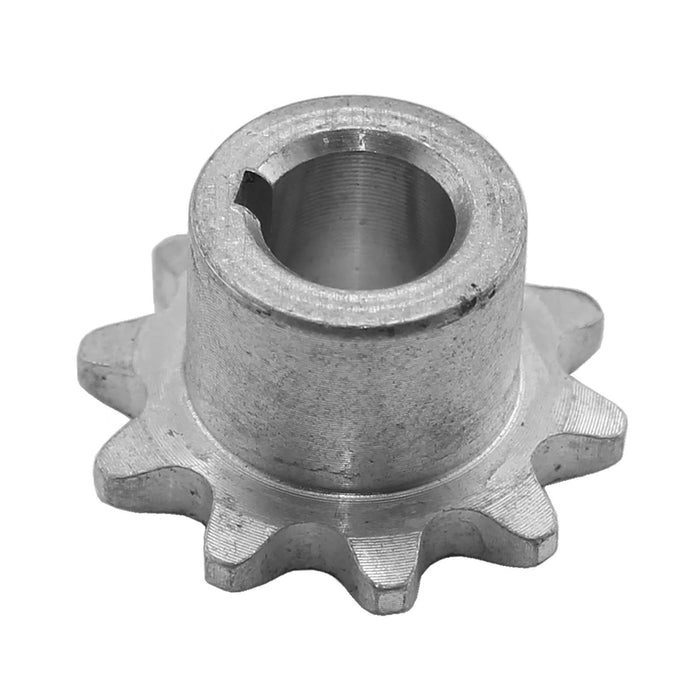

25 Series 10 Tooth 8 mm Bore Aluminum Sprocket

by AndyMark

$10.00 USD - $10.00 USD

$10.00 USD

$10.00 USD

$10.00 USD - $10.00 USD

$10.00 USD

Description
Specifications
Documentation

S25-10HA-313K, 7075 Aluminum Sprocket, 25 Series, 10 tooth, 313 Key Bore Fits the 8 mm shaft of a 2.5 in. CIM Motor, with a 2 mm keyway.
- Bore: 0.313 in. with 2 mm keyway
- Material: 7075 Aluminum
- Outside Diameter: 0.92 in.
- Overall Hub And Sprocket Width: 0.5 in.
- Pitch Diameter: 0.81 in.
- Sprocket Width: 0.118 in.
- Teeth: 10
- Weight: 0.011 lbs.
CAD Files
am-0505 S25-10HA-313K, Aluminum Sprocket, 10 tooth.STEP
Layout Prints
am-0505 S25-10HA-313K, Aluminum Sprocket, 10 tooth.PDF

Not Returnable

This product is not eligible for returns. All sales are final.
