20 Tooth 32 DP 0.375 in. Round Bore Steel Gear for EVO Encoder - am-3532 - migrated

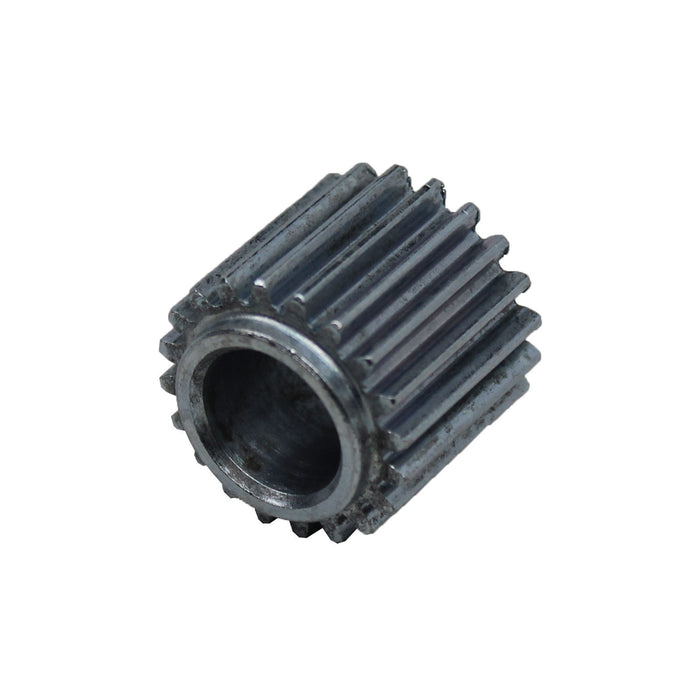

20 Tooth 32 DP 0.375 in. Round Bore Steel Gear for EVO Encoder

by AndyMark
$12.00 USD - $12.00 USD
$12.00 USD
$12.00 USD
$12.00 USD - $12.00 USD
$12.00 USD
SKU am-3532
  • Description
  • Specifications
  • Documentation
  • This gear is a press fit gear specifically designed for the 2 Stage EVO Shifter Output shafts, as part of the encoder setup.
    • Bore: 0.375 in. [9.5 mm] (3/8) Round
    • Diametral Pitch: 32
    • Face Width: 0.62 in.
    • Finish: Zinc Plated
    • Material: 1117 Steel
    • Pitch Diameter: 0.625 in.
    • Pressure Angle: 20°
    • Teeth: 20
    • Weight: 0.03 lbs.

  • CAD Files

    am-3532 20T 32DP 375 Bore Gear.STEP

    Layout Prints

    am-3532 20T 32DP 20PA 0.375 Bore Gear.PDF
