2 Stage EVO Output Plate

by AndyMark

Save 74%

$34.00 USD

$34.00 USD - $34.00 USD

$34.00 USD

$9.00 USD

$9.00 USD - $9.00 USD

$9.00 USD

This is the output plate for all 2 Stage EVO Shifter transmissions.

Description
Specifications
Documentation

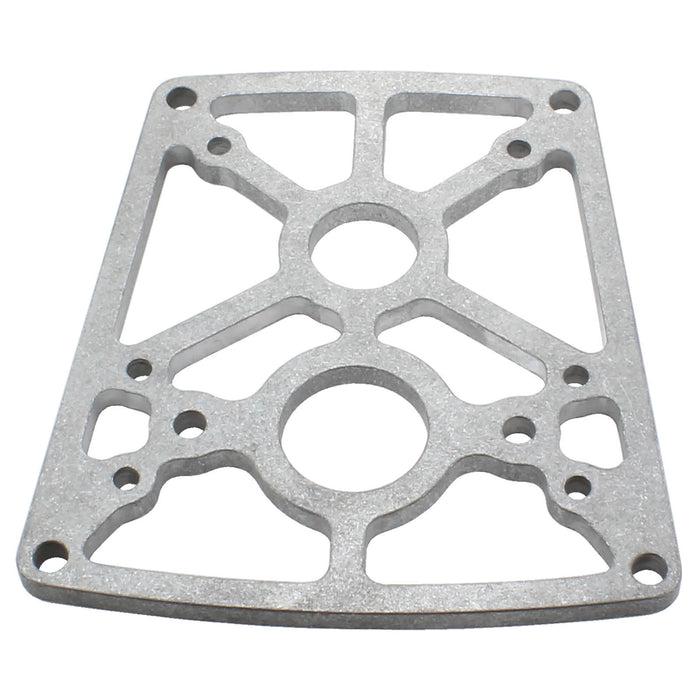

This is the output plate for all 2 Stage EVO Shifter transmissions. This plate in conjunction with an EVO Shifter 3 Motor or 2 Motor Plate, captures the internal components of the EVO Shifter. The output shaft of the transmission protrudes out of this plate when assembled. This updated version of the plate provides additional mounting holes for West Coast style drives.
- Material: 6061-T6 Aluminum
- Overall Height: 5.25 in.
- Overall Width: 4.88 in.
- Thickness: 0.25 in.
- Weight: 0.247 lbs.
CAD Files
am-3528a Evo 2 Stage Shaft Plate.STEP
am-3528 Evo Shifter 2 Stage Output Plate.STEP
Layout Prints
am-3528a Evo 2 Stage Shaft Plate.PDF
am-3528 Evo Shifter 2 Stage Output Plate.PDF
