14 Tooth 0.375 in. Hex Bore HTD Pulley

Name: 14 Tooth 0.375 in. Hex Bore HTD Pulley
Brand: AndyMark
SKU: am-4960
Price: 7.2 USD
Availability: InStock
Rating: 5.0 (1 reviews)

by AndyMark

$7.20 USD - $7.20 USD

$7.20 USD

$7.20 USD - $7.20 USD

$7.20 USD

This 14 tooth pulley works with any 9 mm wide 5 mm pitch HTD belt.

Description
Specifications
Documentation

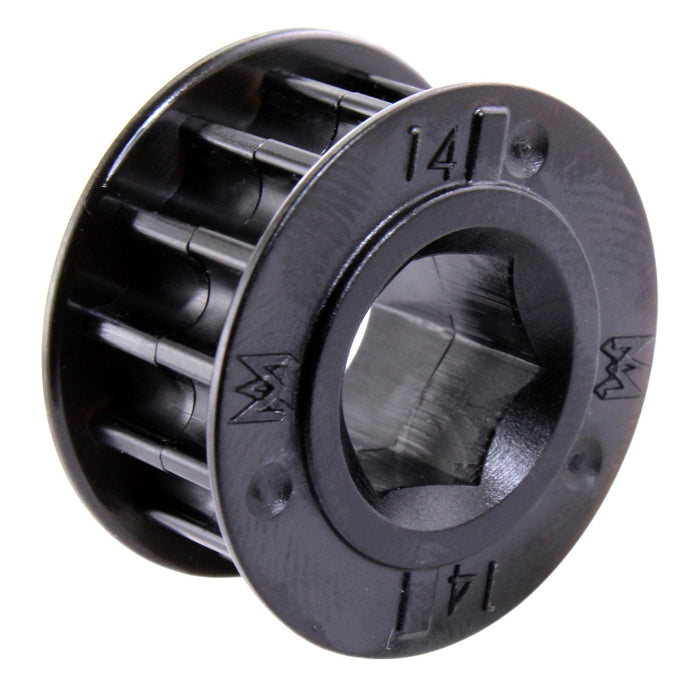

This is a 14 tooth pulley. It works with any 9 mm wide 5 mm pitch HTD belt. This pulley has a 3/8 in. hex bore making it easy to use on our 3/8 in. hex shaft or Robits Hex Shafts. This pulley comes as two identical halves that mesh with each other to create one pulley that is the correct width for a 9 mm timing belt.
- Belt Profile: 5 mm pitch HTD timing belt, 9 mm wide
- Bore: 0.375 in. [9.5 mm] (3/8) Hex
- Flange Diameter: 0.94 in.
- Material: Black Polycarbonate
- Outside Diameter: 0.832 in.
- Pitch Diameter: 0.877 in.
- Teeth: 14
- Width: 0.5 in. (0.25 in. each half)
CAD Files
am-4960 14 Tooth 5mm HTD 0375 Hex Pulley (9mm wide).STEP
Layout Prints
am-4960 Robits Belt Lengths (14 Tooth Pulleys).pdf
am-4960_half 14 Tooth 5mm HTD 0375 Hex Pulley Half.pdf
