1/4-28 Female Aluminum Rod End - am-4185 - migrated

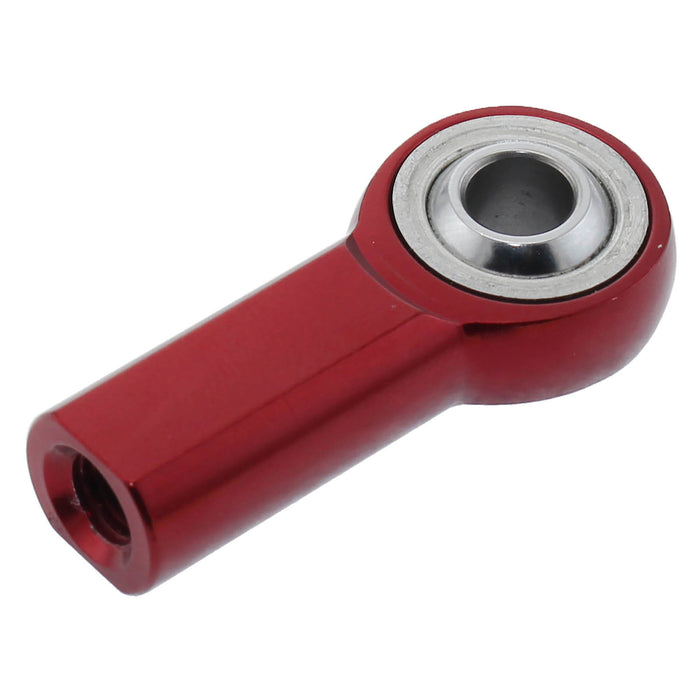

1/4-28 Female Aluminum Rod End

by AndyMark
$20.00 USD - $20.00 USD
$20.00 USD
$20.00 USD
$20.00 USD - $20.00 USD
$20.00 USD
This rod end features an articulated ball joint housed in a threaded body.
SKU am-4185
  • Description
  • Specifications
  • Documentation

  • This component aides in making robust connections to your pneumatic cylinders by allowing for small variances in alignment and flexure during actuation. The distance from the bearing center to the bottom is 1.321 inches. The overall depth or flat to flat is 0.375 inches. This rod end bearing has a female thread of 1/4-28 x 0.687 inches. The ball joint accepts a 0.25 inch bolt or shaft.

    • Finish: Hard Chrome Plated Ball, Hard Anodized Red Body, Zinc Plated Race
    • Inside Diameter: 0.250 in.
    • Material: 52100 Steel Ball, 7075-T6 Aluminum Body, Alloy Steel Race
    • Thread: 1/4-28 0.687 in. Long

  • CAD Files

    am-4185 14-28 RH Female Aluminum Rod End.STEP

    Layout Prints

    am-4185 14-28 Female Aluminum Rod End.PDF
