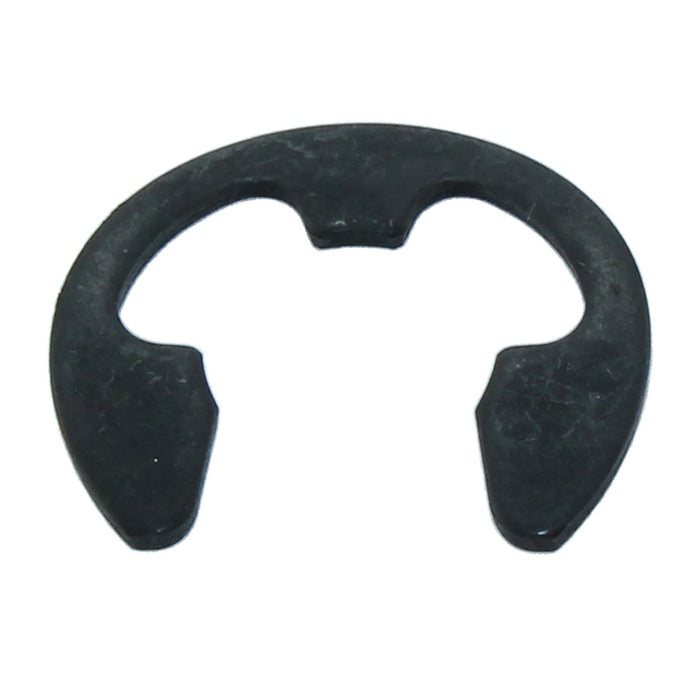

1/2 in. External Bowed Retaining Ring - am-1540_1 - Image-1 - migrated

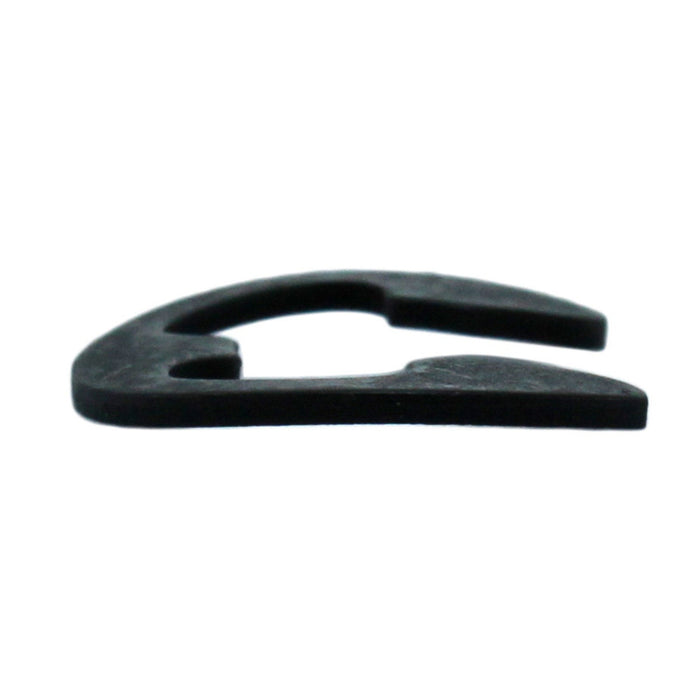

1/2 in. External Bowed Retaining Ring

by AndyMark

$0.32 USD - $0.32 USD

$0.32 USD

$0.32 USD

$0.32 USD - $0.32 USD

$0.32 USD

Also known as an E clip, this little device is perfect to help lock mechanisms in place along a shaft.

Description
Specifications
Documentation

This particular one is great to add some axial preload to those items or compensate for the grove in the shaft being in slightly the wrong spot.
- For Shaft Diameter: 0.500 in. [12.7 mm] (1/2)
- Free Inside Diameter: 0.392 in.
- Groove Diameter: 0.396 in.
- Groove Width: 0.073 in.
- Material: Steel
- Thickness: 0.042 in.
- Weight: 0.002 lbs.
CAD Files
am-1540 Bowed Side-Mount External Retaining Ring.STEP
Layout Prints
am-1540 Bowed Side-Mount External Retaining Ring.pdf
