0.5 in. Wide 30 in. Long Constant Force Spring - am-4666 - migrated

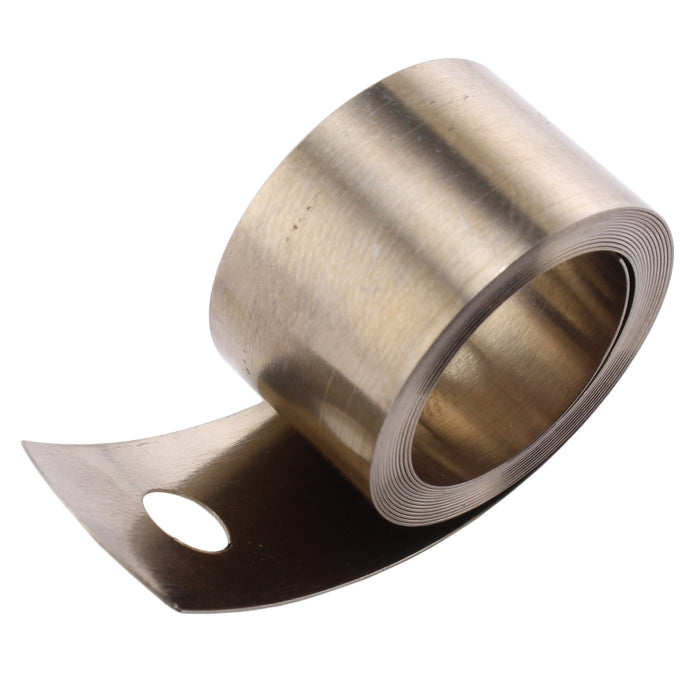

0.5 in. Wide 30 in. Long Constant Force Spring

by AndyMark
$7.20 USD - $7.20 USD
$7.20 USD
$7.20 USD
$7.20 USD - $7.20 USD
$7.20 USD
This is a compact, tightly coiled spring used with linear extensions.
SKU am-4666
  • Description
  • Specifications
  • Documentation

  • No matter how far you extend them, these springs pull back with the same amount of force. Compact and tightly coiled, these springs extend to nearly 2 1/2 feet in length to pull objects in a linear direction. Please allow for 1 1/2 coils on the shaft at full extension to hold the spring in place.

    • Extended Length: 30 in.
    • Inside Diameter: 0.588 in.
    • Load: 2.6 lbs.
    • Material: Spring Steel
    • Mounting Hole: 0.188 in.
    • Outside Diameter: 0.6 in.
    • Thickness: 0.008 in.
    • Width: 0.5 in.

  • CAD Files

    am-4666 0.5IN Wide, 30IN Long Constant Force Spring.STEP
